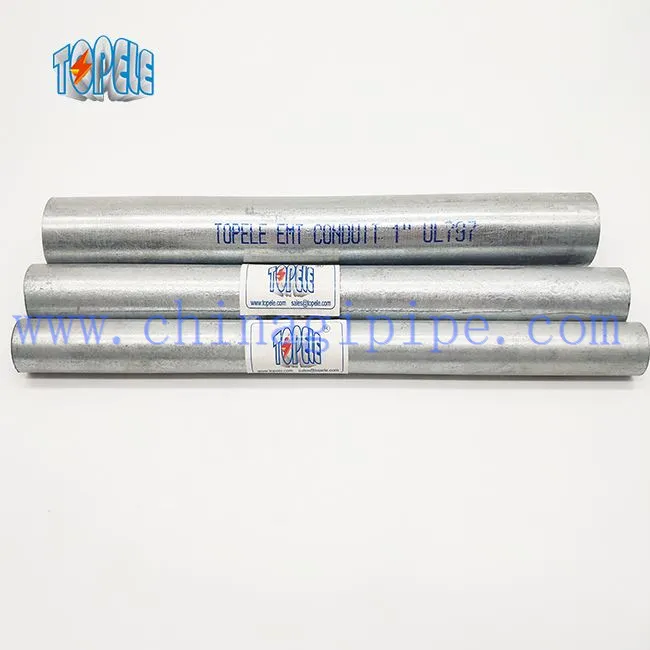

Hlau Galvanized EMT Conduit

UL 797 Txuj EMT Conduit yeeb nkab

---

Kev piav qhia:

Hlau galvanized EMT conduit yog ib qho ntawm qhov sib sib thiab thinnest threading yeeb nkab hauv Asmeskas tus qauv. Lub taub hau yeeb nkab tsis muaj xov, thiab nws txuas nrog teeb tsa ntsia hlau hom connectorwhich feem ntau siv rau hauv tsev kho kom zoo nkauj

Daim ntaub ntawv:

TOPELE Steel galvanized EMT conduit yog tsim los tiv thaiv thiab txoj kab hluav taws xob thiab cov khoom sib txuas. Nws tuaj yeem ntsia tau zoo lossis zais lossis zais. Nruab nws sab hauv lossis sab nraum zoov siv cov fawm faus nag.

EMT conduit tau muab faib ua tus qauv thiab thinner. Tib lub sijhawm, cov tuab no kuj tseem tuaj yeem ua raws li tus neeg siv khoom' s yuav tsum ua;

EMT muaj kev kho mob saum npoo avKUB DUBPED GALVANIZED (HDG)thiabPre-galvanized.

Ul npe conduit yog Kub dipped galvanized

Specifications:

UL 797 Txuj EMT Conduit yeeb nkab

• Txuj Ci: ANSI C80.3-1983 UL 797

• Hom Lub Npe: TOPELE

• Xim Tsev Neeg: Nws Yog Hlau

• Conduit type: Nws yog xim hlau

• Hom: Conduit

• Yeem Hloov: Tsis Yog

• Ntev: 10 ft.

• Khoom siv: hlau

• Xaus: Kub-dipped Galvanized / pre-galvanized

• Qhov Loj: los ntawm 1/2" txog rau 4"

Nominal taub	Txoj kab uas hla sab nraud	Phab Ntsa Thickness	Ntev	Ntim	Nyhav / Chav (kg)
1.Txoj EMT Tube (Hluav taws xob nws yog xim hlau tubing) txheem yeeb nkab
1/2"	17.93 hli	1.07 hli	3.05m	20pcs / pob khoom	1.36
3/4"	23.42mm	1.24 hli	3.05m	15pcs / pob khoom	2.07
1"	29.54 hli	1.45 hli	3.05m	10pcs / pob khoom	3.06
1-1 / 4"	38.35hli	1.60 hli	3.05m	5pcs / pob khoom	4.56
1-1 / 2"	44,2 hli	1.65 hli	3.05m	5pcs / pob khoom	5.28
2"	55.8mm	1.65 hli	3.05m	5pcs / pob khoom	6.78
2-1 / 2"	73.03mm	1.83 hli	3.05m	1pcs / pob khoom	9.8
3"	88.9 hli	1.83 hli	3.05m	1pc	11.98
3-1 / 2"	101.6mm	2.11 hli	3.05m	1pc	15.79
4"	114.3mm	2.11 hli	3.05m	1pc	17.8

Nominal taub	Txoj kab uas hla sab nraud	Thickness ntawm phab ntsa	Ntev	Ntim	Nyhav / Chav (kg)
EMT Tube - nyias phaj tuab yeeb nkab
1/2"	17.93 hli	0.85 hli	3.05m	20pcs / pob khoom	1.092
3/4"	23.42mm	1 hli	3.05m	15pcs / pob khoom	1.499
1"	29.54 hli	1.1 hli	3.05m	10pcs / pob khoom	2.353
1-1 / 4"	38.35hli	1.30 hli	3.05m	5pcs / pob khoom	3.623
1-1 / 2"	44,2 hli	1.30 hli	3.05m	5pcs / pob khoom	4.195
2"	55.8mm	1.40mm	3.05m	5pcs / pob khoom	5.728

Ntim

Kev sib tw kom zoo dua:

EMT Conduit

+ Kev xa khoom sai: 15days rau ib qho 20ft thawv.
+ Nqe Sib Tw

+ Cov Khoom Zoo: UL daim ntawv pov thawj pom zoo

+ Kev Pab Zoo Tshaj: Kev xa khoom ceev, pob muaj zog, tus nqi zoo, raws sijhawm thiab kev sib txuas lus zoo

+ Lub Zog Muaj Zog: daws qhov teeb meem nrawm thiab muaj txiaj ntsig

Peb nyob nraum paub tias yog ib qho ntawm kev coj ua EMT Hluav Taws Xob Conduit tuam ntxhab thiab cov muag khoom hauv Suav Teb. Txais tos rau lag luam wholesale qhov zoo steel galvanized emt conduit los ntawm peb. Tus nqi sib tw, xa khoom raws sijhawm thiab kev pabcuam zoo tomqab muag tau zoo. Yog xav paub ntxiv, hu rau peb tam sim no.

Cim npe nrov: steel galvanized emt conduit, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, lag luam wholesale, nqi
